Deploying the Wild Rydes Container Demo

As a first step, we’ll deploy the demo app to your AWS account and then see how we can debug different problems with Lumigo.

RECOMMENDATION: you shouldn’t deploy this to your production AWS account. Use your personal account, or a playground account.

Deploy the demo app using AWS Management Console

  • First we will need the Lumigo Tracer Token. Login into your Lumigo account, navigate to Settings -> Tracing, and copy the token from Manual tracing section.
  • Login into your AWS Account and use this CloudFormation link to create the stack. Update LumigoToken parameter with your value
  • Navigate to ECS Cluster created, got to Tasks and click on the running task
  • In Configuration section click open address next to Public IP value

Deploy the demo app using CLI

For this method your AWS CLI will need to be authenticated with the required permissions and accesses to deploy the demo application.

Update YOUR_LUMIGO_TRACER_TOKEN in the line below with your Lumigo Tracer Token, Then run the following:

aws cloudformation create-stack --stack-name WildRydesDemo --template-url https://lumigoworkshop.s3.amazonaws.com/WildrydesECS.yaml --parameters ParameterKey=LumigoToken,ParameterValue=YOUR_LUMIGO_TRACER_TOKEN --capabilities CAPABILITY_NAMED_IAM

That should then return a message like this:

{
    "StackId": "arn:aws:cloudformation:us-east-1:[AWS User ID]:stack/WildRydesDemo/79e73fb0-e3fe-11ed-b120-0ae4419fb0aaaa9"
}

You can check the status of the deployment by running the following to check the StackStatus

aws cloudformation describe-stacks --stack-name WildRydesDemo --query "Stacks[].StackStatus[]" --output text

Once finished we then need the public ip address from the ECS task, run this to get the public IP so we can check out app:

aws ec2 describe-network-interfaces --network-interface-ids $(aws ecs describe-tasks --cluster UniECSCluster --tasks $(aws ecs list-tasks --cluster UniECSCluster --family UniTaskFamily --query "taskArns[]" --output text) --query "tasks[].attachments[].details[?name=='networkInterfaceId'].value[]" --output text) --query "NetworkInterfaces[].Association[].PublicIp[]" --output text

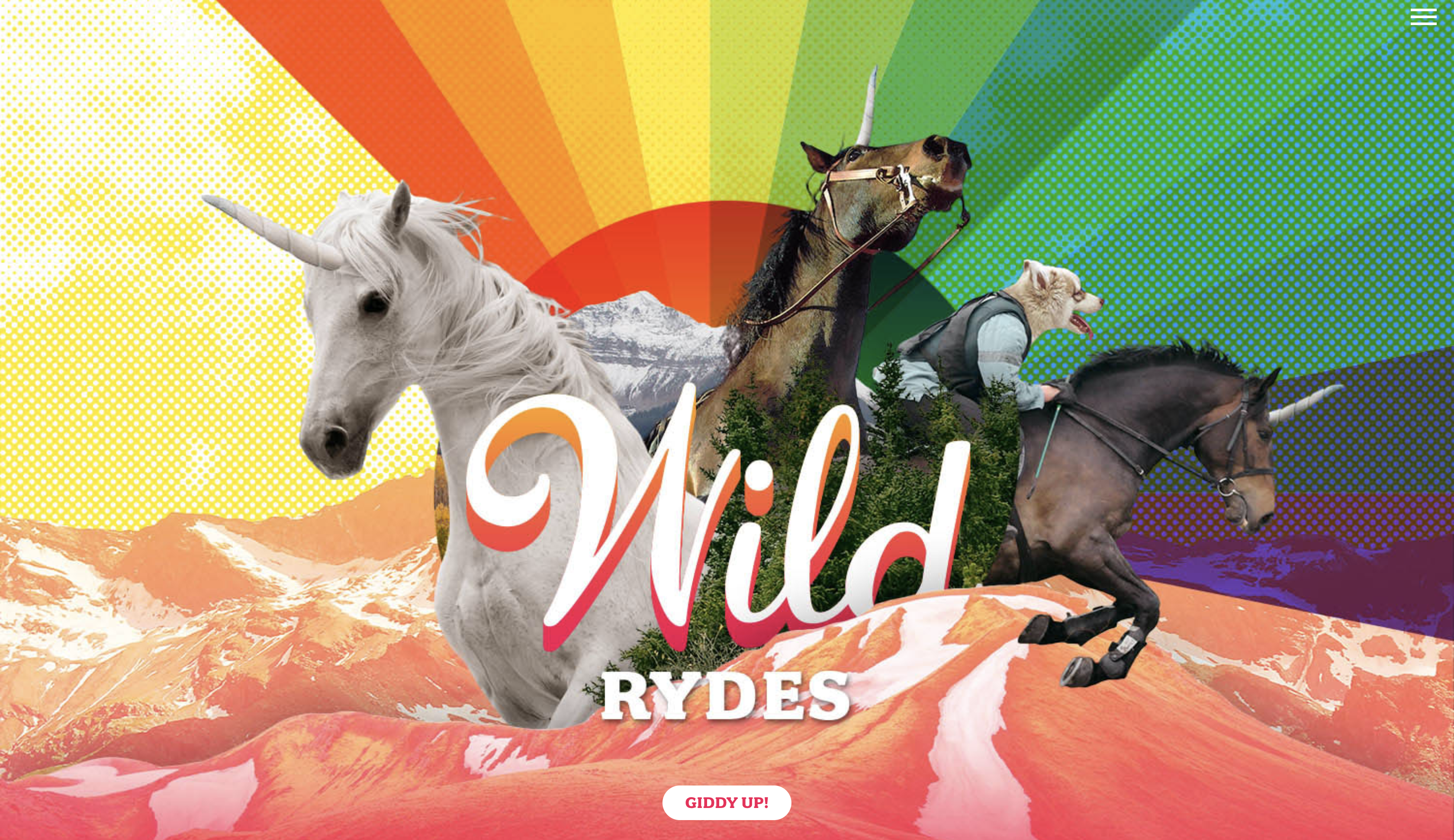

Enter the returned IP address into a browser and you should see the screen below

Congratulations, you have successfully deployed the ECS Wild Rydes app 🎉🎉
